EMI Shielding Mesh – Excellent Shielding Performance & High Transparency

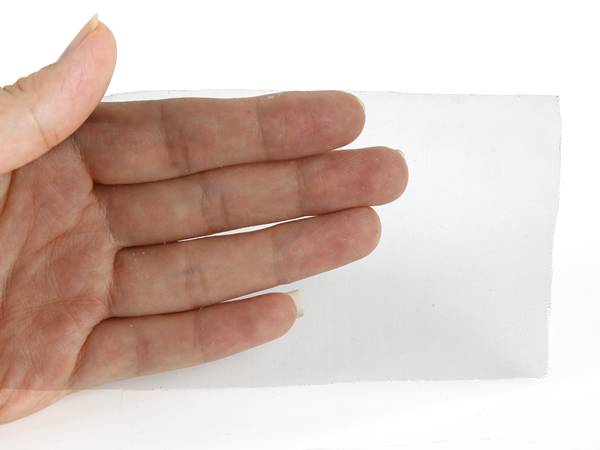

A hand is holding a piece of EMI shielding mesh.

EMI mesh is the ideal shielding mesh for various screen panels because of the high transparency and excellent shielding performance. EMI mesh adopts blackened stainless steel mesh or blackened copper mesh as the raw material, which has excellent electromagnetic shielding performance as well as high transparency. Besides, the perfectly visual experience make it more and more popular all over the world.

You can purchase the EMI mesh for directly use, or you can make it into additional products, such as mesh foils, self-adhesive foils and other products for your customers.

Standard EMI mesh material

  • Blackened stainless steel mesh
  • Blackened copper mesh

EMI mesh applications

  • Shielding displays
  • Shielding windows
  • Shielding touch screens
  • Shielding monitors
  • Shielding LCD screens
  • TEMPEST shielding

EMI mesh angle

A drawing shows the custom angle of emi shielding mesh
Custom cut EMI shielding mesh for you

Moiré effect may appear when you place the EMI mesh on your screens, you should place them at a specific angle to eliminate the moiré effect.

  • Commonly used angle is 17°, 35° or 45°
  • We recommend that you request a sample of EMI mesh to determine the proper angle for your application.
  • If you know the accurate angle, just tell us, we can cut the EMI mesh as your specific angle and sizes.
We can see the clear moiré effect when the emi shielding mesh placed at 0 angle.

EMI mesh with moiré effect

We can clearly see the logo of boegger withou any moiré effect when the emi shielding mesh placed at 45 angle.

EMI mesh without moiré effect

Technical data

Table 1: Commonly Specifications of EMI Mesh for Screen Panels
Item Type (wires/inch) Wire Diameter (mm) Nominal Aperture (μm) Light Transmission (%) Width Available (m) Length Available (m)
EMIM-01 50 × 50 * 0.03 478 88.54 1/1.22/1.5 30/60/100
EMIM-02 80 × 80 0.025 290 84.87 1/1.22/1.5 30/60/100
EMIM-03 100 × 100 0.025 230 84.28 1/1.22/1.5 30/60/100
EMIM-04 100 × 100 * 0.03 220 77.77 1/1.22/1.5 30/60/100
EMIM-05 120 × 120 0.02 190 82.00 1/1.22/1.5 30/60/100
EMIM-06 120 × 120 0.03 180 73.66 1/1.22/1.5 30/60/100
EMIM-07 160 × 160 0.03 130 65.78 1/1.22/1.5 30/60/100
EMIM-08 160 × 160 0.05 110 46.93 1/1.22/1.5 30/60/100
EMIM-09 165 × 165 * 0.03 120 64.82 1/1.22/1.5 30/60/100
EMIM-10 200 × 200 0.05 77 36.76 1/1.22/1.5 30/60/100
EMIM-11 250 × 250 * 0.03 72 49.66 1/1.22/1.5 30/60/100
Note:
* is usually used in military.
Blackened Copper Mesh is available too. And the specifications is same.
